Acknowledgements

• Libraries used: JavaFX, JUnit5
• This project is based on the AddressBook-Level3 project created by the SE-EDU initiative.
• We would also like to thank all professors, TAs, PE Dry Run Testers, coursemates and friends who have helped and supported us throughout the project.

---

Setting up, getting started

Refer to the guide Setting up and getting started.

---

Design

Architecture

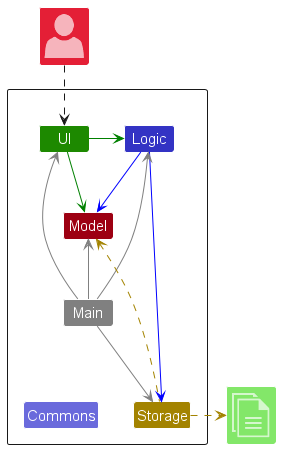

The Architecture Diagram given above explains the high-level design of the App.

Given below is a quick overview of main components and how they interact with each other.

Main components of the architecture

Main (consisting of classes Main and MainApp) is in charge of the app launch and shut down.

• At app launch, it initializes the other components in the correct sequence, and connects them up with each other.
• At shut down, it shuts down the other components and invokes cleanup methods where necessary.

The bulk of the app’s work is done by the following four components:

• UI: The UI of the App.
• Logic: The command executor.
• Model: Holds the data of the App in memory.
• Storage: Reads data from, and writes data to, the hard disk.

Commons represents a collection of classes used by multiple other components.

How the architecture components interact with each other

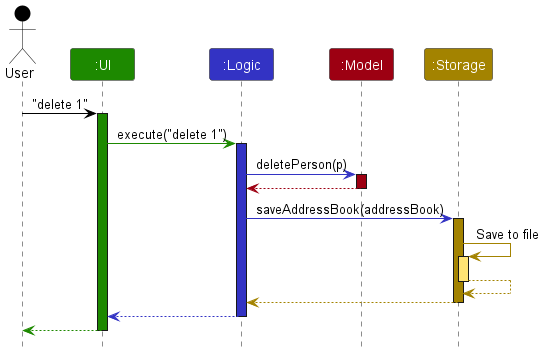

The Sequence Diagram below shows how the components interact with each other for the scenario where the user issues the command delete 1.

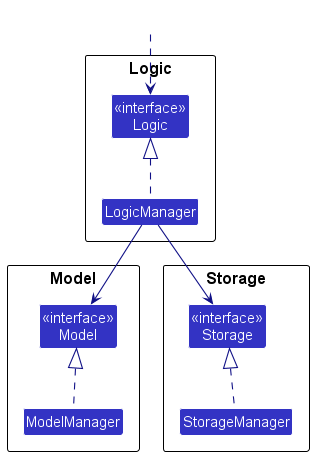

Each of the four main components (also shown in the diagram above),

• defines its API in an interface with the same name as the Component.
• implements its functionality using a concrete {Component Name}Manager class (which follows the corresponding API interface mentioned in the previous point.

For example, the Logic component defines its API in the Logic.java interface and implements its functionality using the LogicManager.java class which follows the Logic interface. Other components interact with a given component through its interface rather than the concrete class (reason: to prevent outside component’s being coupled to the implementation of a component), as illustrated in the (partial) class diagram below.

The sections below give more details of each component.

UI component

The API of this component is specified in Ui.java

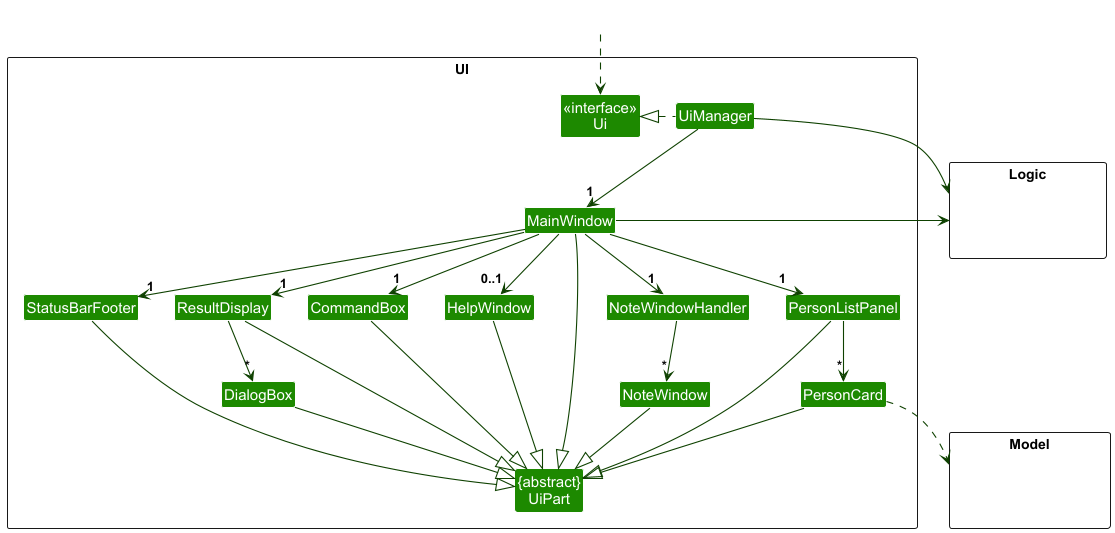

The UI consists of a MainWindow that is made up of parts e.g.CommandBox, ResultDisplay, PersonListPanel, StatusBarFooter etc. All these, including the MainWindow, inherit from the abstract UiPart class which captures the commonalities between classes that represent parts of the visible GUI.

The UI component uses the JavaFx UI framework. The layout of these UI parts are defined in matching .fxml files that are in the src/main/resources/view folder. For example, the layout of the MainWindow is specified in MainWindow.fxml

The UI component,

• executes user commands using the Logic component.
• listens for changes to Model data so that the UI can be updated with the modified data.
• keeps a reference to the Logic component, because the UI relies on the Logic to execute commands.
• depends on some classes in the Model component, as it displays Person object residing in the Model.

Logic component

API : Logic.java

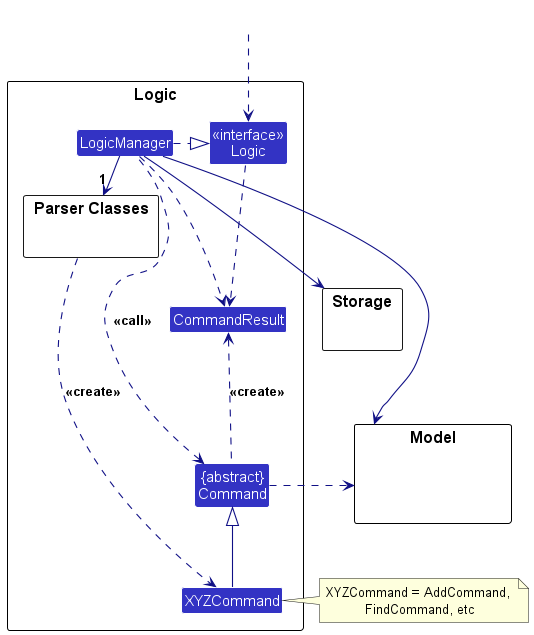

Here’s a (partial) class diagram of the Logic component:

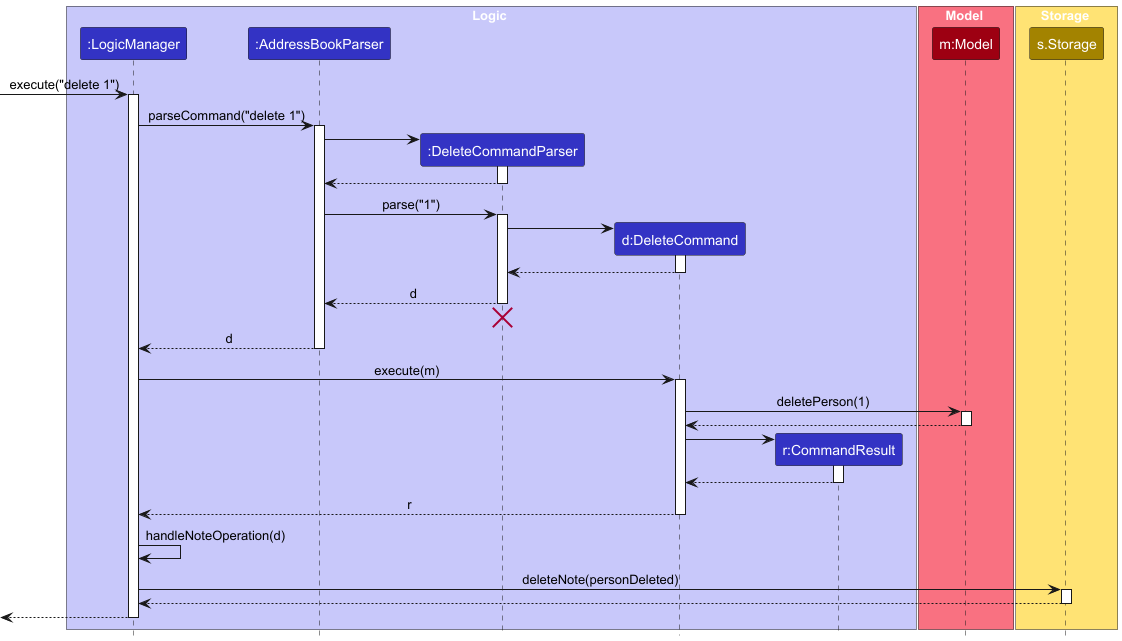

The sequence diagram below illustrates the interactions within the Logic component, taking execute("delete 1") API call as an example.

How the Logic component works:

1. When Logic is called upon to execute a command, it is passed to an AddressBookParser object which in turn creates a parser that matches the command (e.g., DeleteCommandParser) and uses it to parse the command.
2. This results in a Command object (more precisely, an object of one of its subclasses e.g., DeleteCommand) which is executed by the LogicManager.
3. The command can communicate with the Model when it is executed (e.g. to delete a person).
   Note that although this is shown as a single step in the diagram above (for simplicity), in the code it can take several interactions (between the command object and the Model) to achieve.
4. The result of the command execution is encapsulated as a CommandResult object which is returned back from Logic.

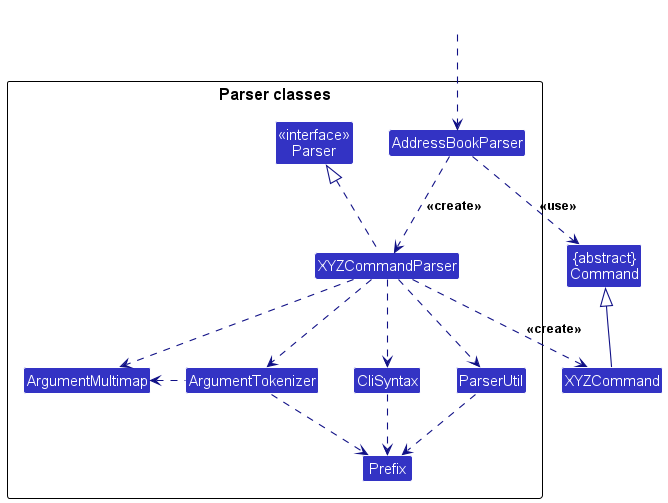

Here are the other classes in Logic (omitted from the class diagram above) that are used for parsing a user command:

How the parsing works:

• When called upon to parse a user command, the AddressBookParser class creates an XYZCommandParser (XYZ is a placeholder for the specific command name e.g., AddCommandParser) which uses the other classes shown above to parse the user command and create a XYZCommand object (e.g., AddCommand) which the AddressBookParser returns back as a Command object.
• All XYZCommandParser classes (e.g., AddCommandParser, DeleteCommandParser, …) inherit from the Parser interface so that they can be treated similarly where possible e.g, during testing.

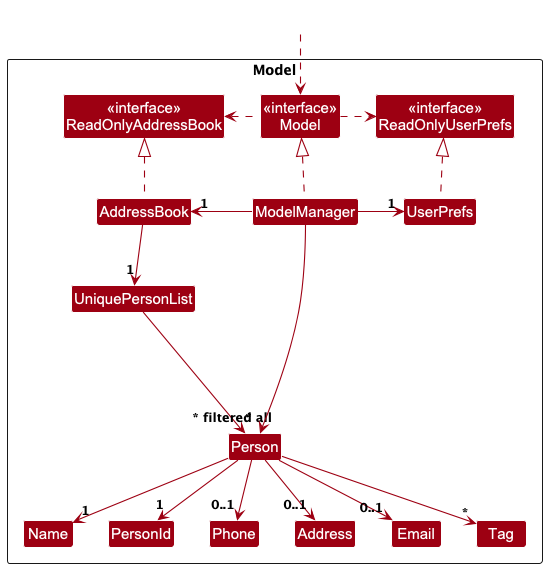

Model component

API : Model.java

The Model component,

• stores the address book data i.e., all Person objects (which are contained in a UniquePersonList object).
• stores the currently ‘selected’ Person objects (e.g., results of a search query) as a separate filtered list which is exposed to outsiders as an unmodifiable ObservableList<Person> that can be ‘observed’ e.g. the UI can be bound to this list so that the UI automatically updates when the data in the list change.
• stores a UserPref object that represents the user’s preferences. This is exposed to the outside as a ReadOnlyUserPref objects.
• does not depend on any of the other three components (as the Model represents data entities of the domain, they should make sense on their own without depending on other components)

The Person,

• requires a name, and at least one of the following fields: phone number, email, address.

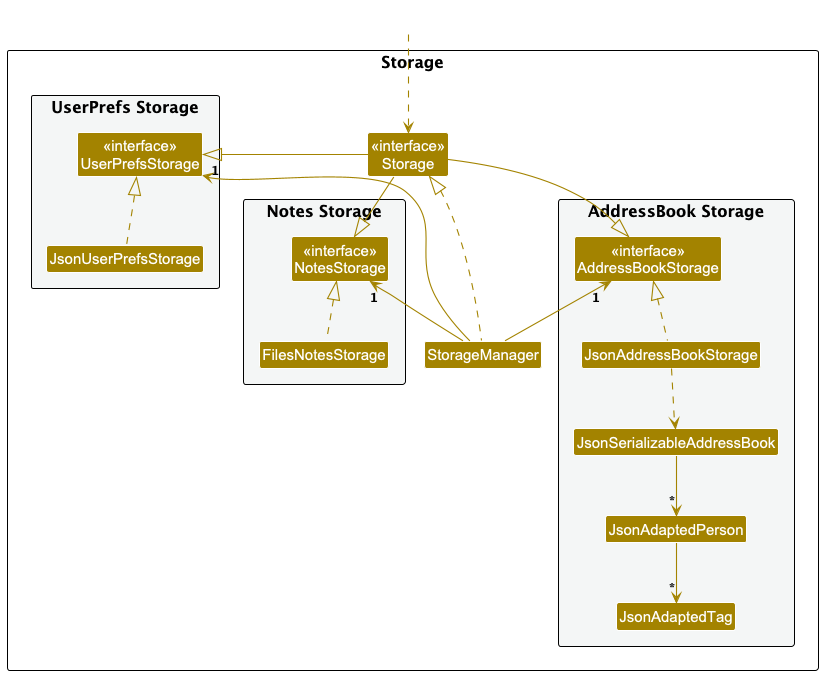

Storage component

API : Storage.java

The Storage component,

• can save both address book data and user preference data in JSON format, and read them back into corresponding objects.
• inherits from both AddressBookStorage and UserPrefStorage, which means it can be treated as either one (if only the functionality of only one is needed).
• depends on some classes in the Model component (because the Storage component’s job is to save/retrieve objects that belong to the Model)

Common classes

Classes used by multiple components are in the seedu.address.commons package.

---

Implementation

This section describes some noteworthy details on how certain features are implemented.

Notes feature

The Notes feature allows users to write and save plain text notes for each contact. These notes can be opened in a separate window, edited at any time, and are saved to a file on the user’s computer. This allows users to keep important information linked to specific people in their contact list.

Implementation

The Notes system spans across the UI, Logic and Storage layers of the application.

UI Layer

When the user executes the command note INDEX, the MainWindow receives the CommandResult from Logic containing the flag isShowNote == true and the targetPerson. It then calls: handleNote(commandResult.getTargetPerson())

This method delegates to NoteWindowHandler, which manages the opening and closing of note windows.

Each NoteWindow is uniquely associated with a Person. Only one note window can be opened per person at a time, tracked by a Map<Person, NoteWindow>.

When the window is initialized, NoteWindow calls logic.readNote(person) to load the existing note (if any), and displays it in a TextArea. When the window is closed, notes are automatically saved by calling logic.saveNote(person, content).

Logic Layer

The LogicManager connects the UI and Storage layers for the Notes system. It exposes three key methods:

• readNote(Person person)
• saveNote(Person person, String content)
• deleteNote(Person person)

These are called directly by the UI when a NoteWindow is opened, closed, or deleted.

Additionally, LogicManager performs note cleanup when specific commands are executed:

• DeleteCommand → deletes the note for the removed person
• ClearCommand and ImportCommand → delete all notes

These cleanup operations are handled in handleNoteOperations(Command command), which runs after each command execution.

Below are the sequence diagrams for NoteCommand and DeleteNoteCommand to illustrate the flow of events

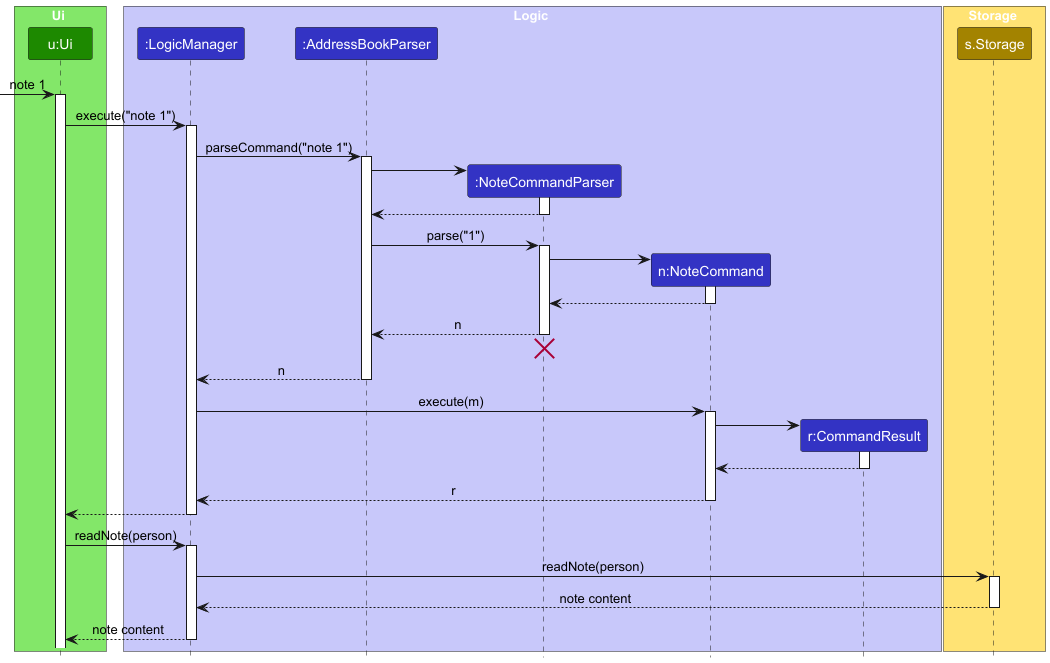

1. Sequence diagram for NoteCommand:

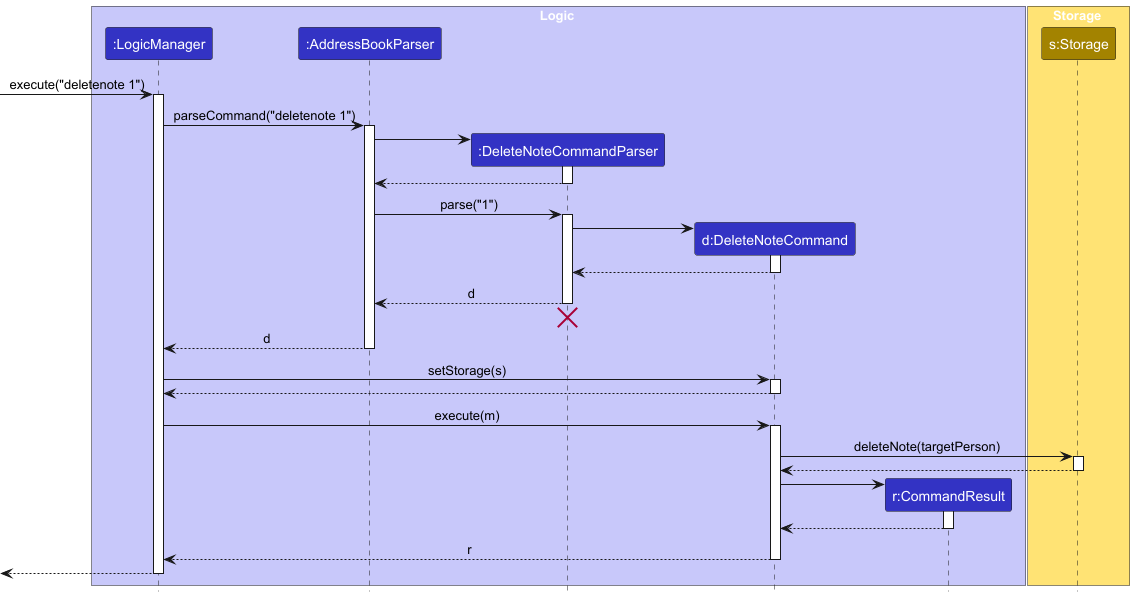

2. Sequence diagram for DeleteNoteCommand:

   Storage Layer

The Notes system uses a dedicated NotesStorage interface, implemented by FileNotesStorage, to handle note persistence.

Each note is saved as a .txt file in a designated notes directory, with filenames based on the Person’s unique ID (e.g., 12.txt). This ensures that notes remain uniquely tied to each contact even if their name changes.

The FileNotesStorage class provides three main methods:

• readNote(Person person) — Returns the note content as a string if the file exists, or an empty string otherwise.
• saveNote(Person person, String content) — Saves the note content to a file. If the file does not exist, it is created automatically.
• deleteNote(Person person) — Deletes the note file associated with the given person.

For bulk operations, deleteAllNotes() removes all note files from the directory.

• triggered by DeleteCommand& ClearCommand.

[Proposed] Undo/redo feature

Proposed Implementation

The proposed undo/redo mechanism is facilitated by VersionedAddressBook. It extends AddressBook with an undo/redo history, stored internally as an addressBookStateList and currentStatePointer. Additionally, it implements the following operations:

• VersionedAddressBook#commit() — Saves the current address book state in its history.
• VersionedAddressBook#undo() — Restores the previous address book state from its history.
• VersionedAddressBook#redo() — Restores a previously undone address book state from its history.

These operations are exposed in the Model interface as Model#commitAddressBook(), Model#undoAddressBook() and Model#redoAddressBook() respectively.

Given below is an example usage scenario and how the undo/redo mechanism behaves at each step.

Step 1. The user launches the application for the first time. The VersionedAddressBook will be initialized with the initial address book state, and the currentStatePointer pointing to that single address book state.

Step 2. The user executes delete 5 command to delete the 5th person in the address book. The delete command calls Model#commitAddressBook(), causing the modified state of the address book after the delete 5 command executes to be saved in the addressBookStateList, and the currentStatePointer is shifted to the newly inserted address book state.

Step 3. The user executes add n/David …​ to add a new person. The add command also calls Model#commitAddressBook(), causing another modified address book state to be saved into the addressBookStateList.

Step 4. The user now decides that adding the person was a mistake, and decides to undo that action by executing the undo command. The undo command will call Model#undoAddressBook(), which will shift the currentStatePointer once to the left, pointing it to the previous address book state, and restores the address book to that state.

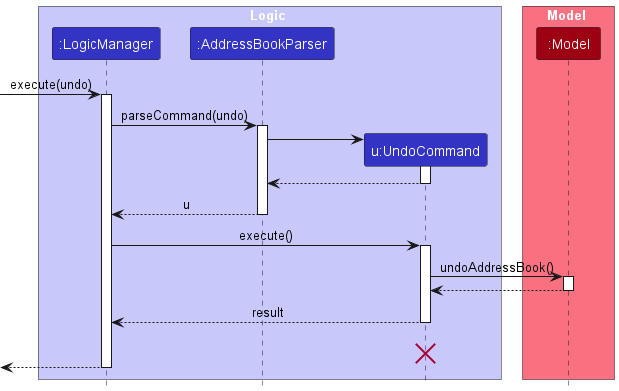

The following sequence diagram shows how an undo operation goes through the Logic component:

Similarly, how an undo operation goes through the Model component is shown below:

The redo command does the opposite — it calls Model#redoAddressBook(), which shifts the currentStatePointer once to the right, pointing to the previously undone state, and restores the address book to that state.

Step 5. The user then decides to execute the command list. Commands that do not modify the address book, such as list, will usually not call Model#commitAddressBook(), Model#undoAddressBook() or Model#redoAddressBook(). Thus, the addressBookStateList remains unchanged.

Step 6. The user executes clear, which calls Model#commitAddressBook(). Since the currentStatePointer is not pointing at the end of the addressBookStateList, all address book states after the currentStatePointer will be purged. Reason: It no longer makes sense to redo the add n/David …​ command. This is the behavior that most modern desktop applications follow.

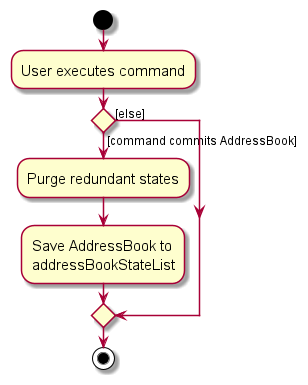

The following activity diagram summarizes what happens when a user executes a new command:

Design considerations:

Aspect: How undo & redo executes:

• Alternative 1 (current choice): Saves the entire address book.
  • Pros: Easy to implement.
  • Cons: May have performance issues in terms of memory usage.
• Alternative 2: Individual command knows how to undo/redo by itself.
  • Pros: Will use less memory (e.g. for delete, just save the person being deleted).
  • Cons: We must ensure that the implementation of each individual command are correct.

{more aspects and alternatives to be added}

---

Documentation, logging, testing, configuration, dev-ops

• Documentation guide
• Testing guide
• Logging guide
• Configuration guide
• DevOps guide

---

Appendix: Requirements

Product scope

Target user profile:

• has a need to manage a significant number of contacts
• prefers desktop apps over other types
• can type fast
• prefers typing to mouse interactions
• is reasonably comfortable using CLI apps
• requires a way to categorise and group contacts easily
• requires a high level of privacy

Value proposition: manage contacts faster than a typical mouse/GUI-driven app, keep contacts safe

User Stories

Priorities: High (must have) - * * *, Medium (nice to have) - * *, Low (unlikely to have) - *

Priority	As a …	I want to …	So that I can…
* * *	new user	see usage instructions	refer to instructions when I forget how to use the App
* * *	user	add a new contact
* * *	user	delete a contact	remove them if they are no longer relevant to my investigations
* * *	user	find a person by name	locate details of persons without having to go through the entire list
* * *	user	tag contacts by credibility (e.g. verified, unverified, anonymous)	assess reliability quickly
* * *	user	search for a contact by tags (e.g. topic, organization)	quickly find relevant contacts
* * *	user	access previously saved contacts	contact people that I have saved the contacts of
* * *	user	keep my contacts locally on my device	maintain the privacy of my contacts
* * *	user	save the home address of a contact	know where to find them if required
* *	user	edit previously saved contacts	change contacts if they have any different information
* *	user	hide private contact details	minimize chance of someone else seeing them by accident
* *	user	export my saved contacts to a different device and have them read easily by the same program	transfer my files to different devices easily
*	user	log conversation notes with each contact	keep track of all my notes and critical information in one place
*	user	view a conversation note	refer back to previously recorded conversation note
*	user	delete conversation notes for each contact	delete conversation notes that are no longer relevant to prevent clutter
*	user	export my notes to a .txt / .pdf file	share information with my team
*	user	create keyboard shortcuts for frequently used actions	work faster
*	user	view my existing keyboard shortcuts	remind myself what keyboard shortcuts I currently have
*	user	delete an existing keyboard shortcut	update my keyboard shortcuts if I have a change of preference
*	user	copy important pieces of information quickly	call or email my contacts
*	user	see when a contact was saved	keep track of when I met the contact
*	user	set follow-up reminders	do not miss out on getting updates from my contacts
*	user	create investigations (groups)	group related contacts together
*	user	add a profile photo for contacts	remember their faces too

Use Cases

Use case: Ask for help - UC1

MSS

1. User asks for help regarding instructions.

2. ScoopBook directs User to a website with detailed instructions for each functionality.

   Use case ends.

Use case: Add a contact - UC2

MSS

1. User requests to add a contact with information into the list.

2. ScoopBook adds contact into the list.

   Use case ends.

Extensions

• 2a. The input given by User is invalid.

  • 2a1. ScoopBook shows an error message.

    Use case resumes at step 1.

Use case: View contacts - UC3

MSS

1. User requests to view list of contacts.

2. ScoopBook shows a list of contacts.

   Use case ends.

Extensions

• 2a. Contact list is empty.

  Use case ends.

Use case: Delete a contact - UC4

MSS

1. User requests to view contacts (UC3).
2. User requests to delete a specific contact in the list.

3. ScoopBook deletes the contact.

   Use case ends.

Extensions

• 2a. The given index is invalid, or the input is not a number.

  • 2a1. ScoopBook shows an error message.

    Use case resumes at step 1.

Use case: Edit a contact - UC5

MSS

1. User requests to view contacts (UC3).
2. User requests to edit a specific contact in the list.

3. ScoopBook edits that contact.

   Use case ends.

Extensions

• 2a. The given input is invalid.

  • 2a1. ScoopBook shows an error message.

    Use case resumes at step 1.

Use case: Add tag(s) to a contact - UC6

MSS

1. User requests to view contacts (UC3).
2. User requests to add tags to a specific contact in the list.

3. ScoopBook adds tags to that contact.

   Use case ends.

Extensions

• 2a. User provides an invalid input.

  • 2a1. ScoopBook shows an error message.

    Use case resumes at step 1.

Use case: Remove tag(s) to a contact - UC7

MSS

1. User requests to view contacts (UC3).
2. User requests to remove tag(s) from a specific contact in the list.

3. ScoopBook removes the specified tags from the specified contact.

   Use case ends.

Extensions

• 2a. The given index is invalid, or the input tag does not exist.

  • 2a1. ScoopBook shows an error message.

    Use case resumes at step 1.

Use case: Search contact by name - UC8

MSS

1. User requests to search for contacts based on keywords.

2. ScoopBook displays a list of contacts whose name matches the keywords.

   Use case ends.

Extensions

• 2a. No contact matches with the keywords.

  • 2a1. ScoopBook shows an error message.

    Use case resumes at step 1.

Use case: Search contact by tag - UC9

MSS

1. User requests to search for contacts based on tags.

2. ScoopBook displays a list of contacts that match the tags.

   Use case ends.

Extensions

• 2a. No contact matches with the tags.

  • 2a1. ScoopBook shows an error message.

    Use case resumes at step 1.

Use case: Export contacts - UC10

MSS

1. User requests to export contacts to a specified file location.

2. ScoopBook saves the relevant contacts in the export file.

   Use case ends.

Extensions

• 1a. User provided invalid file location.

  • 1a1. Scoopbook raises an error

    Use case ends.

Use case: Import contacts - UC11

MSS

1. User requests to import contacts from a file location.

2. ScoopBook imports the contacts from the import file.

   Use case ends.

Extensions

• 1a. User provided invalid file location.

  • 1a1. Scoopbook raises an error

    Use case ends.

• 1b. User provided file with invalid format

  • 1b1. Scoopbook raises an error

    Use case ends.

Use case: Create investigation - UC12 (To be implemented)

MSS

1. User requests to create an investigation.

2. ScoopBook creates the investigation.

   Use case ends.

Extensions

• 1a. The name of the investigation already exists.

  • 1a1. ScoopBook informs User that there is already an investigation with the same name.

    Use case ends.

Use case: Add contact to investigation - UC13 (To be implemented)

MSS

1. User requests to add a contact to an existing investigation.

2. ScoopBook adds the contact to the specified investigation.

   Use case ends.

Extensions

• 1a. The investigation specified by User does not exist.

  • 1a1. ScoopBook informs User that no such investigation exists.

    Use case ends.

• 1b. The contact specified by User does not exist.

  • 1b1. ScoopBook informs User that no such contact exists.

    Use case ends.

• 1c. Multiple contacts contain the keywords specified by User.

  • 1c1. ScoopBook informs User that there are duplicates, and that the operation cannot be performed.

    Use case ends.

Use case: Remove contact from investigation - UC14 (To be implemented)

MSS

1. User requests to remove a contact from an existing investigation.

2. ScoopBook removes the contact from the specified investigation.

   Use case ends.

Extensions

• 1a. The investigation specified by User does not exist.

  • 1a1. ScoopBook informs User that no such investigation exists.

    Use case ends.

• 1b. The contact specified by User does not exist in the investigation.

  • 1b1. ScoopBook informs User that no such contact exists.

    Use case ends.

• 1c. Multiple contacts or investigations contain the keywords specified by User.

  • 1c1. ScoopBook informs User that there are duplicates, and that the operation cannot be performed.

    Use case ends.

Use case: View and edit specific conversation note - UC15

MSS

1. User requests to view contacts (UC3).
2. User requests to view a specific conversation note from a specific contact.

3. ScoopBook displays the specified conversation note to edit.

   Use case ends.

Extensions

• 2a. The given conversation note index or contact index is invalid.

  • 2a1. ScoopBook shows an error message.

    Use case resumes at step 1.

Use case: Delete conversation note - UC16

MSS

1. User requests to view contacts (UC3).
2. User requests to delete a specific conversation note by index.

3. ScoopBook deletes the conversation note.

   Use case ends.

Extensions

• 2a. User provides an invalid input.

  • 2a1. ScoopBook shows an error message.

    Use case resumes at step 1.

Use case: Export note - UC17 (To be implemented)

MSS

1. User requests to view contact (UC3).
2. User requests to export notes by index or export all for a specific contact.
3. ScoopBook prompts the location to save the export file of notes in.
4. User confirms the save location.

5. ScoopBook saves the relevant notes in the export file.

   Use case ends.

Extensions

• 2a. The given contact index or notes indexes are invalid.

  • 2a1. ScoopBook shows an error message.

    Use case resumes at step 1.

• 3a. User decides to cancel the operation.

  Use case resumes at step 1.

Use case: View keyboard shortcuts - UC18 (To be implemented)

MSS

1. User requests to view keyboard shortcuts.

2. ScoopBook displays all actions with keyboard shortcuts with their respective shortcuts.

   Use case ends.

Extensions

• 2a. Keyboard shortcut list is empty.

  • 2a1. ScoopBook displays an empty list.

    Use case ends.

Use case: Create keyboard shortcuts - UC19 (To be implemented)

MSS

1. User requests to view keyboard shortcuts (UC18).
2. User requests to create keyboard shortcuts.
3. ScoopBook displays available actions that can be assigned to a shortcut.
4. User selects a specific action and specifies a key combination.

5. ScoopBook assigns the shortcut.

   Use case ends.

Extensions

• 4a. User provides an invalid action index.

  • 4a1. ScoopBook shows an error message.

    Use case resumes at step 3.

• 4b. User provides an invalid or existing shortcut combination.

  • 4b1. ScoopBook shows an error message.

    Use case resumes at step 3.

Use case: Delete keyboard shortcuts - UC20 (To be implemented)

MSS

1. User requests to view keyboard shortcuts (UC18).
2. User requests to delete a specific keyboard shortcut in the list.

3. ScoopBook deletes the specific keyboard shortcut.

   Use case ends.

Extensions

• 2a. User provides an invalid index.

  • 2a1. ScoopBook shows an error message.

    Use case resumes at step 1.

Use case: Set follow-up reminder - UC21 (To be implemented)

MSS

1. User requests to view contacts (UC3).
2. User requests to set a follow-up reminder to specific contact.

3. ScoopBook sets a follow-up reminder.

   Use case ends.

Extensions

• 2a. User provides an invalid input.

  • 2a1. ScoopBook shows an error message.

    Use case resumes at step 1.

Use case: Delete follow-up reminder - UC22 (To be implemented)

MSS

1. User requests to view contacts (UC3).
2. User requests to delete a specific follow-up reminder to a specific contact.

3. ScoopBook deletes the follow-up reminder.

   Use case ends.

Extensions

• 2a. User provides an invalid input.

  • 2a1. ScoopBook shows an error message.

    Use case resumes at step 1.

Use case: Add profile photo - UC23 (To be implemented)

MSS

1. User requests to view contacts (UC3).
2. User requests to add a profile photo for a specific contact.
3. ScoopBook prompts the location to access the profile photo file.
4. User selects the profile photo.

5. ScoopBook saves the profile photo.

   Use case ends.

Extensions

• 2a. User provides an invalid input.

  • 2a1. ScoopBook shows an error message.

    Use case resumes at step 1.

• 4a. User selects an invalid file.

  • 4a1. ScoopBook shows an error message.

    Use case resumes at step 2.

Non-Functional Requirements

• Should work on any mainstream OS as long as it has Java 17 installed.
• Should be able to store up to 1000 persons with no more than 1s of response time between each command entered.
• A user with above-average typing speed (50 WPM) for regular English text (i.e., not code, not system admin commands) should be able to accomplish most basic tasks like adding contacts faster using commands than using the mouse.
• Should not require a login, since ScoopBook is on a user’s own device.
• All user data must be stored locally and should not require an internet connection for core functionality.
• The application must be developed using modular, well-documented code to support future feature additions and maintenance.

Glossary

OS: Operating System. A program that manages both hardware and software on a device.

CLI: Command Line Interface. A mechanism through which users interact with their operating system.

CLI (-based) app: An app primarily based on the key feature of the CLI, which is text-based typing.

GUI: Graphical User Interface. A form of user interface that allows users to interact with electronic devices through graphical icons and visual indicators.

User: The person using ScoopBook.

Attributes: Relevant information that a contact may have. E.g., “high priority,” “whistleblower,” or “government official.”

Investigation: A group of contacts that share some commonality. Users can create investigations and choose who to add to or remove from them.

---

Appendix: Instructions for manual testing

Given below are instructions to test the app manually.

Launch and shutdown

1. Initial launch

   1. Download the jar file and copy into an empty folder

   2. Using your computer’s terminal, cd into the folder in the previous step.

   3. Use java -jar ScoopBook.jar to open the application

2. Saving window preferences

   1. Resize the window to an optimum size. Move the window to a different location. Close the window.

   2. Re-launch the app by double-clicking the jar file.
      Expected: The most recent window size and location is retained.

---

Viewing Help

Test case: help
Expected: Opens the help window with instructions on how to use the commands.

Test case: help abc
Expected: Still opens the help window. Extraneous parameter is ignored.

---

Adding a person

Prerequisite: App is launched.

Test case: add n/John Doe p/98765432 e/johnd@example.com a/123 John Street
Expected: Adds John Doe to the contact list. Details shown in result display.

Test case: add n/Betsy Crowe t/friend e/betsycrowe@example.com a/Newgate Prison p/1234567 t/criminal t/silent
Expected: Adds Betsy Crowe with multiple tags.

Test case: add n/Johnny Appleseed
Expected: Error shown. Missing phone number, email, or address.

Test case: add n/John! Doe p/1234567
Expected: Error shown. Name contains characters that are not accepted. Acceptable characters: alphanumeric characters, whitespaces, ,, (, ), @, ., -, '.

---

Listing all persons

Test case: list
Expected: All persons currently in the address book are displayed.

Test case: list 123
Expected: All persons currently in the address book are displayed. Extraneous parameters ignored.

---

Editing a person

Prerequisite: At least 2 persons in the list.

Test case: edit 1 p/91234567 e/johndoe@example.com
Expected: 1st person’s phone number and email are updated.

Test case: edit 2 n/Betsy Crower t/
Expected: Updates name, clears all tags.

Test case: edit 2
Expected: Error. No field provided.

Test case: edit 0 p/12345678
Expected: Error. Index must be a positive integer.

---

Finding persons by name

Prerequisite: Contact list currently contains people with the following names: John Mary, John Doe, Alex Yeoh, David Lim, Hans Solo.

Test case: find John
Expected: Displays persons with names containing “John”.

Test case: find Alex David
Expected: Displays any persons with name containing “Alex” or “David”.

Test case: find Han
Expected: No match for “Hans”. Partial matches not allowed.

---

Deleting a person

Prerequisites: Should have at least 1 contact in the menu.

Test case: delete 1 (after list)
Expected: Deletes first contact.

Test case: delete 0
Expected: Error. Invalid index.

Test case: delete
Expected: Error. Missing index.

---

Adding tags

Prerequisite: Should have at least 1 contact in the menu.

Test case: addtag 1 t/friend t/neighbour
Expected: Adds both tags to person at index 1.

Test case: Following the previous test case, addtag 1 t/friend!
Expected: Error. Tag contains invalid character.

---

Removing tags

Prerequisite: Should have at least 1 contact in the menu. The first contact should have friend as a tag.

Test case: removetag 1 t/friend
Expected: Removes “friend” tag.

Test case: Following the previous test case, removetag 1 t/Friend
Expected: No tag removed. Case mismatch.

---

Finding by tag

Prerequisite: Should have at least 5 contacts in the menu. At least two contacts should have friends as a tag. At least one of the friends contacts should have a neighbours tag.

Test case: findtag t/friends
Expected: Displays persons with tag “friends”, “Friends”, etc.

Test case: findtag t/friends t/neighbours
Expected: Only persons with both tags are displayed.

---

Notes

Prerequisite: Should have at least 1 contact in the menu.

Test case: note 1
Expected: Opens a note window for person at index 1.

Test case: note 0
Expected: Error. Invalid index.

---

Deleting a note

Prerequisites: Should have at least 1 contact in the menu. Test case: deletenote 1
Expected: Deletes note from person at index 1.

Test case: deletenote
Expected: Error. Missing index.

---

Clearing all entries

Test case: clear
Expected: Delete all contacts and notes from the address book.

Test case: clear abc
Expected: Still clears all contacts and notes. Extraneous parameter ignored.

---

Export

Test case: export Contacts.json
Expected: Export the json file as Contacts.json in the root folder of where the .jar is located at.

Test case: export /invalid/path/Contacts.json
Expected: Error shown. Invalid path.

---

Import

Test case: import Contacts.json (valid exported file)
Expected: Replaces all contacts with imported data. Notes are deleted.

Test case: import corrupted.json
Expected: Returns error message.

---

Saving

Prerequisite: Should have at least 1 contact in the menu.

Test case: note 1. Then, add random text. Then, close the note window. Enter note 1 again. Expected: Note should show the same random text shown earlier.

Test case: list. Then, addtag 1 t/colleague. Use exit to exit the application. Launch the application again. Expected: Upon opening the application, the first contact should have the tag colleague.

---

Exit

Test case: exit
Expected: Application closes.

---

Appendix: Planned Enhancements

Team size: 5

1. Removing placeholder values for Person: Currently Person uses a placeholder value for optional fields in the contact. I.e., if Alex Yeoh has a phone number only, the email and address fields will be replaced with a placeholder value instead of being blank. We plan to wrap each field in an Optional class so that it is able to handle empty values rather than leaving it with a placeholder value.
2. Person cards to be more visible for longer texts: Currently, Person fields truncates long text fields (i.e., Name, Phone Number, Email, Address). For example, if the name exceeds a certain length, it will be truncated with a “…”. It shall be updated in future iterations to be able to display the whole text field by using a scrolling mechanic to see the whole text field for all fields (Name, Phone Number, Email, Address, Tags).
3. Standardise error messages for commands that use Index referencing: Currently, commands that use index referencing do not return the same error message for different cases of index errors. Invalid cases include: out of bounds for addressbook, non-positive integers, non-integers. We plan to standardise the index error messages to the different cases of invalid index accordingly.
4. Improve search commands: find command currently uses an OR operator to search. (i.e. find John Mary will return contacts with names John, Mary, and John Mary, but John Mary does not appear as the first contact). find shall be updated to return results where the first contact is the most relevant contact (i.e Names with John Mary) followed by other contacts.
5. Allow user to copy from display: Currently, the display does not allow users to copy text from the display. This may cause inconvenience or introduce delays for journalists who may want to copy text from the display. We plan to introduce support for copying for ease of use.
